SSH Tunneling

Route database connections through an SSH tunnel to reach servers in private networks

SSH Tunneling

TablePro tunnels database connections through SSH using a built-in libssh2 client. No ssh binary or external setup is required. The tunnel opens a local forwarding port in the 60000-65000 range (this is why macOS may show a network permission prompt), sends a keep-alive every 30 seconds, and reconnects automatically if the tunnel dies.

The SSH Tunnel pane appears only for databases whose driver supports it. Databases reached through a file path or an HTTP API (SQLite, LibSQL, Beancount, BigQuery, Cloudflare D1, DynamoDB, Elasticsearch, Snowflake) do not show it.

Setting Up

1. Open the connection form and switch to the SSH Tunnel pane
2. Toggle Enable SSH Tunnel on
3. Fill in SSH Host, SSH Port (default 22), and SSH User
4. Pick an authentication method
5. Back on General, click Test Connection

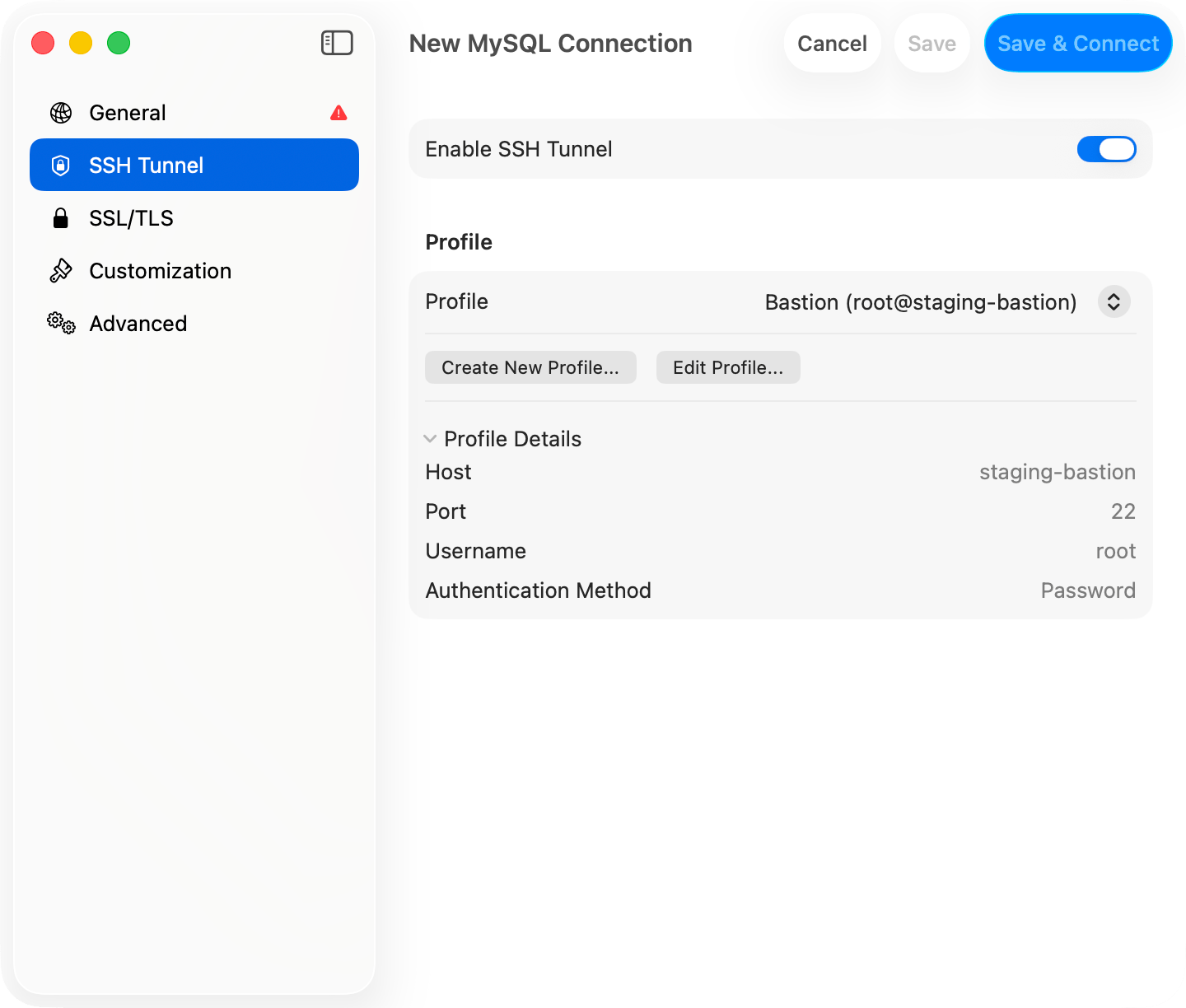

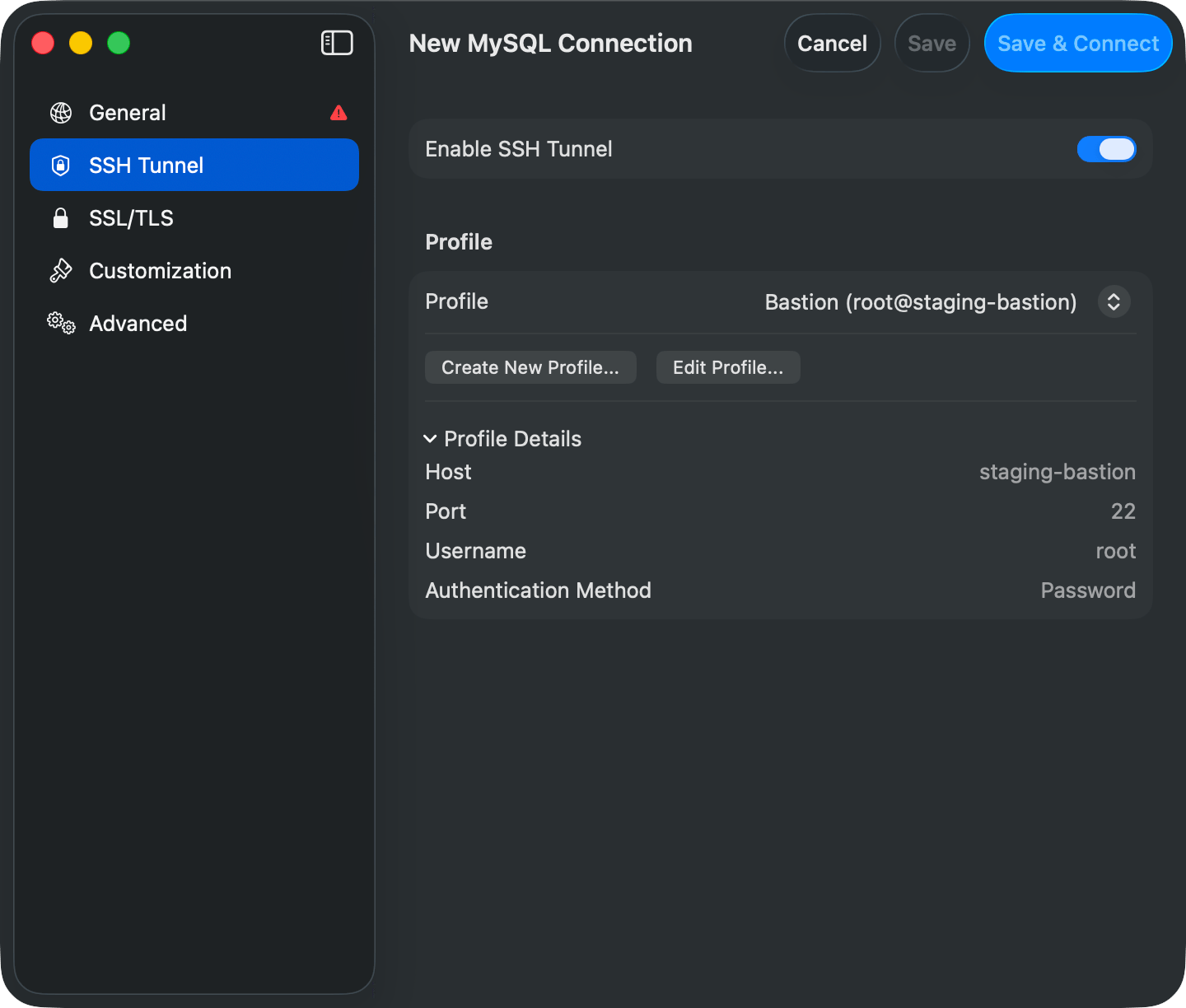

SSH tunnel configuration

The database Host and Port on the General pane are what the SSH server uses to reach the database, not what your Mac would use. Use localhost if the database runs on the SSH server itself, or the internal hostname (for example an RDS endpoint reached through a bastion) if it runs elsewhere. If the database listens on a Unix socket rather than a port, use Socket Path instead.

To reuse one SSH config across several connections, save it as a profile with Save Current as Profile… or pick one from the Profile picker. See SSH Profiles.

Authentication Methods

Password

Enter your SSH password in the Password field. Prefer keys for production servers.

Private Key

Field	Description
Key File	Path to your private key. Click Browse to pick one.
Passphrase	Key passphrase, if the key is encrypted

Leave Key File empty to auto-detect the key from ~/.ssh/config and default key locations.

If the server also requires a keyboard-interactive step such as a 2FA code, TablePro prompts for it after the key is accepted.

SSH Agent

Signing is delegated to an agent process; TablePro never reads the key. The Agent Socket picker offers:

• SSH_AUTH_SOCK: the system SSH_AUTH_SOCK environment variable
• 1Password: 1Password’s socket at ~/Library/Group Containers/2BUA8C4S2C.com.1password/t/agent.sock
• Custom Path: any other agent socket path (Secretive, custom ssh-agent)

If the server also requires a keyboard-interactive step such as a 2FA code, TablePro prompts for it after the agent authenticates.

Keyboard Interactive

Sends your password through SSH’s keyboard-interactive challenge-response. Use this when the server rejects plain password auth, which is common with PAM-based setups.

None

Sends no password or key. Use this when the server authenticates the connection itself, such as a Tailscale SSH host or a bastion configured for passwordless access. If the server still requires credentials, the connection fails with a message telling you to pick another method.

Verification Prompts and Two-Factor Authentication

If the SSH server issues a keyboard-interactive challenge during authentication, for example a verification code from google-authenticator or duo_unix, TablePro shows the server’s prompt and lets you type the response. This works with every authentication method except None, including a private key or SSH agent followed by a second factor (AuthenticationMethods publickey,keyboard-interactive).

The Two-Factor Authentication section lets you skip that prompt for TOTP codes:

• None or Prompt at Connect: TablePro asks for the code when the server requests it.
• Auto Generate: TablePro computes the code from your base32 TOTP Secret (the key from your authenticator enrollment). Algorithm (SHA1, SHA256, SHA512), digits (6 or 8), and period (30s or 60s) are configurable; defaults match most setups.

Host Keys

On first connection TablePro shows the server’s key type and SHA-256 fingerprint (same format as ssh-keygen -l) and asks whether to trust it. Trusted keys are stored in ~/Library/Application Support/TablePro/known_hosts.

If a trusted server’s key changes, TablePro shows a warning with the old and new fingerprints. Disconnect is the default button; choose Connect Anyway only if you know the server was reinstalled. With jump hosts, every hop’s key is verified.

Using ~/.ssh/config

If ~/.ssh/config has Host entries, a Config Host picker appears above the SSH Host field. Pick an alias and TablePro resolves HostName, User, Port, IdentityFile, IdentityAgent, and ProxyJump from the config at connect time. Values you type in the form override the config. The file is re-read whenever it changes, including Included files.

Picking a host from ~/.ssh/config

Jump Hosts

When the database sits behind one or more bastions, expand the Jump Hosts section and add each intermediate host in order. TablePro chains the hops in-process: each hop is an SSH session tunneled through the previous one, no ssh subprocess involved.

Field	Description
Host	Hostname or IP of the jump host
Port	SSH port (default 22)
Username	SSH username for this hop
Auth	Private Key or SSH Agent
Key File	Path to private key (Private Key auth only)

Password auth is not available for jump hosts. If the jump host list is empty and the SSH host matches a config entry with a ProxyJump directive, TablePro follows it.

Forwarding to a Unix Socket

Some servers only listen on a Unix socket, with no TCP port open at all. A PostgreSQL box configured for local connections in pg_hba.conf is the common case. Fill in Socket Path on the General pane and TablePro forwards to that socket instead of a host and port, the same thing ssh -L 5434:/var/run/postgresql/.s.PGSQL.5432 server does by hand. Host and Port are ignored while a socket path is set.

Give the path to the socket file, not the directory holding it:

Database	Typical socket path
PostgreSQL	/var/run/postgresql/.s.PGSQL.5432
MySQL / MariaDB	/var/run/mysqld/mysqld.sock
Redis	/var/run/redis/redis.sock

This works through jump hosts: the hops get you to the SSH server, and the socket is opened from there.

A database listening on a Unix socket cannot negotiate TLS, so TablePro turns SSL off for the connection. Nothing is exposed by this: the whole path still runs inside the encrypted SSH tunnel.

peer authentication works, because the connection to the socket is made by the SSH server as your SSH login user. So a local all all peer line authenticates you as the PostgreSQL role matching your SSH username.

The SSH server has to allow socket forwarding. It is on by default, but if sshd_config sets AllowStreamLocalForwarding no, TablePro says so instead of failing with a dropped connection. Note this is a separate setting from AllowTcpForwarding.

Import from URL

Paste a scheme+ssh:// URL to create a connection with SSH pre-filled. The +ssh suffix works with any non-file-based scheme (mysql+ssh, postgres+ssh, redis+ssh, mongodb+ssh, …). TablePlus SSH URLs import directly. See the Connection URL Reference for the format and parameters.

Troubleshooting

Tunnel connects but the database fails: the database host is resolved from the SSH server, not your Mac. Verify it from the server: ssh user@server "nc -z db-host 5432". Also check that the database credentials differ from the SSH ones where they should.

Tunnel connects but the database times out reading the server greeting: the tunnel could not open its forwarding channel to the database. TablePro gives up after 10 seconds and closes the connection. Open Console.app and filter on com.TablePro to see the LibSSH2Tunnel message naming the destination and the reason. Check that the SSH server allows TCP forwarding (AllowTcpForwarding yes) and that it can reach the database host itself.

Tunnel drops on idle networks: TablePro already sends a libssh2 keep-alive every 30 seconds plus OS-level TCP keep-alives. If tunnels still drop, check the server’s ClientAliveInterval and idle timeouts on firewalls or load balancers in between.

Firewall prompt on connect: TablePro listens on a local port between 60000 and 65000 for the tunnel. Allow it.

SSH itself fails: test the same host, user, and key in Terminal with ssh -v user@server. If that fails, the problem is server-side, not TablePro.
